的用途与简价：/Purpose and introduction

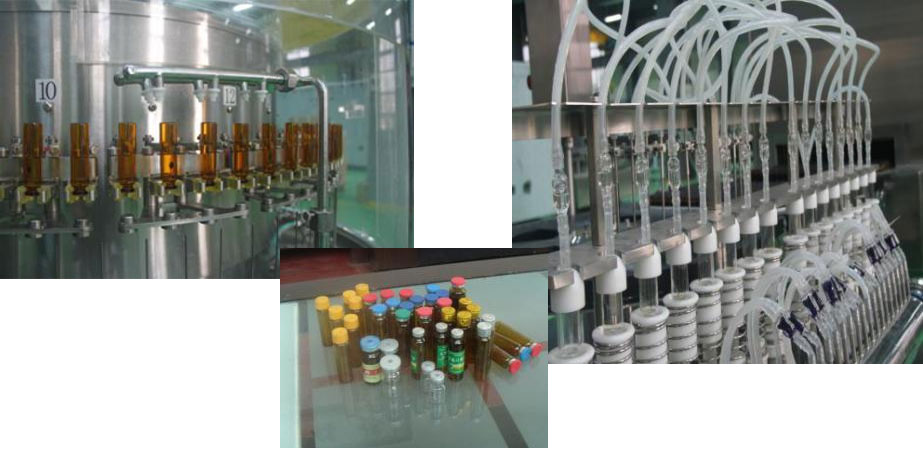

服食药液洗烘灌轧联调机制线由落地多普勒彩超波洗瓶机、铁路隧道式制热 嵌套循环无菌真空烘箱、服食药液装罐设备轧盖机等成分，好于 5-30ml 等有差异规 格服食药液瓶的生育制造。可完工对保健药品生育制造中安瓿瓶淋水、多普勒彩超波除污、冲水、充 气、风干无菌、冷去、装罐设备、轧盖等生产技术进行的联调机制使用。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特殊性:/characteristic

◆洗瓶机使用自动化手夹瓶，实用四种的规格的塑料瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用雾水喷针反复追踪添加图片的方式，刷洗的效果显著，不仅节约生物质能源。并设置有针架防晃动器，改善喷针添加图片塑料瓶的明确度，增多断针这种现象再次发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的雾水管线、喷针完整单独的错开，杜绝了交错式严重污染，合适GMP规程规范；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机螺杆式前另装缓冲区块，有保护区挤出机螺杆式，变少碎瓶帮助Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶通过整体性美国进口同歩带，连结拨块气力输送机冲剂液，启动稳定性准确In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱用到红外线预散铜管，304不绣钢预散铜管双层线路预热的温度透亮性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机可以配卫浴陶瓷泵、装饰管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装灌无瓶止灌，无瓶不轧盖特点。Pieces filling without bottle filling, no bottle no rolling function.◆整线通过PLC总有效把控好、变频式器、触屏屏有效把控好科技，作业平稳稳定可靠性。触屏屏可表现各电脑单机的作业动态，各有效把控好点的静水压、压力表、风速、工作温度等表现，各旋钮动态和错误码表现，错误码自主临床诊断和错误码具体分析及排除故障的方式。使所有分娩历程达到半机械有效把控好，联线拥有三机自动化均匀系统，以确保分娩均匀稳定可靠性。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.可根据买家的要有，还可供选装：According to the needs of customers, but also available for selection:◆西门子PLC、德力西、三菱数控体统、台达等品牌标志保持体统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气重压、水的温度及mri波力度、埃尘离子、风速等级优酷云测量、警报器、日志、word打印装置。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测隔离开器程序。Mixer ORABS, CRABS, aseptic isolator system.

科技性能参数：technical parameters

可用規格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备要求Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖通过率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
