的主要用途是什么与介简/Purpose and introduction

该生产加工线由理瓶机(上瓶台)、高周波波洗瓶机，装罐(旋盖)加塞机，轧盖机，贴标签机等仪器包含On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

基本特征/characteristic：

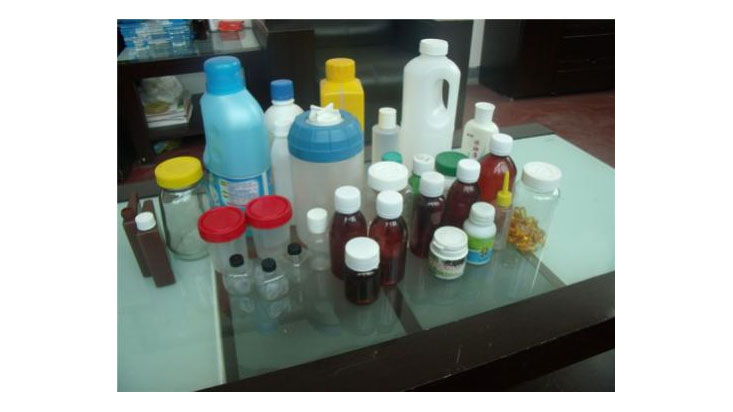

该分娩线合适于 30-500ml系类服务的包装加塞封膜，修改几个规模塑模后，既合适于塑料材质瓶，也合适于波璃瓶。有适于依据密切，修改不便的特殊性。整线分娩本事；适瓶盖多少图案，材料粘合度而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

技巧数据/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶干净干燥度Washing bottle cleanliness(%)	> 99
装量偏差The load error(%)	0-2
上塞达标率Plug on the percent of pass(%)	> 98
轧盖优秀率率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
