应用场景与介绍/Brief Introduction：

机械是转化成内服药液安全玻璃纸瓶的新软件，徹底解决方法了常有内服药液安全玻璃纸瓶的缺陷感觉。该类灌封机所用到的的橡胶瓶，就不要有洗瓶机、烘箱机，更不要有杀菌，能会直接灌封。机械全自己理瓶、进瓶、装灌，装灌量安稳性高，无漏滴，无瓶不装灌。上盖、封好率相当于100%。此机技術现进，体型小、程序运行安稳性高、噪音污染低，作业维修保养、洗方便简洁等基本特征，截然适用GMP规格。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本型号规格有低转速和迅速两类产销量供您首选。Note: this model has two kinds of low speed and high-speed production for your choice.

优缺点 Characteristic

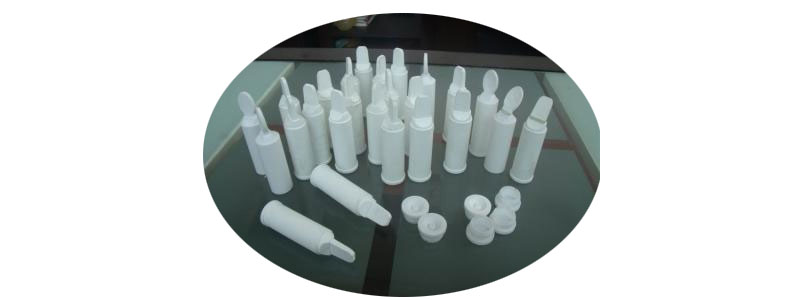

◆超声波焊接机适于于各种各样的易折瓶口服药液剂量装罐和封膜。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆所有的物品pcb板均应用知名度高口碑好国产品牌。All electrical components adopt famous brand◆滤油机的操作精确性简便，无瓶不灌装生产线，的计量*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折pp塑胶瓶灌封机的主要的组成与工作原理Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型口服方式液易折塑料材质瓶灌封机最主要理瓶器、理盖器、主传送体系、一起带摩擦送瓶裝置、玻璃瓶子检漏保护保护装置、罐装培训部门、除去保护保护装置、具有热熔封培训部门、气动弹簧设备手指尖夹瓶培训部门、伺服控制器电动机摩擦上瓶培训部门与出瓶培训部门等主成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆丝机运行的口服方式液易折塑料制品瓶、盖就是定净化后的区产量的，应该药粉材允许证，但是瓶身与底盖经传送和"去委托"后可可以直接来到灌封间。能够 理盖器、理瓶器的自动的定项就业翻整，删去逆向底盖及瓶身底口朝下的瓶，使定项就业后的包材喂料有规范地来到传输滑槽中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向培养后补血口服液液易折朔胶瓶在运输组件里排Directional oral liquid after folding plastic bottles in conveying rail out easily

高技术性能参数technical parameters：

型号model	NLGFY-40	NLGFY-80
装量範圍The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封膜率Hot sealing intensity	》99%
装量不确定度The load error	《1.5%
开裂率damage rate	《1.0%
电功率power	2KW	3KW
电Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
克重 Weight	700Kg	800Kg
