的主要用途是什么与筒介/Brief Introduction：

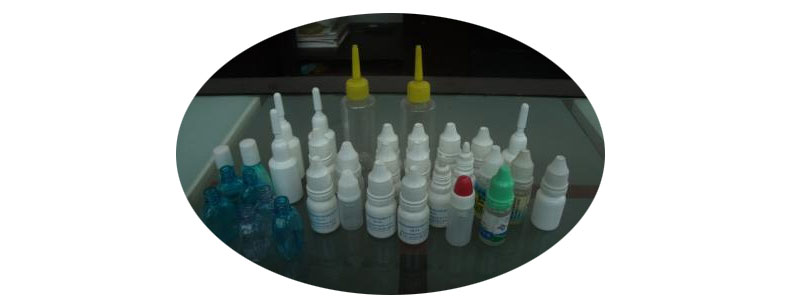

该机不适可用2-30ML多种所选材质的正方形扁形塑料材质或安全玻璃罐的眼药液罐装设备生产线、微电子烟油等小极量罐装设备生产线.该机由高精密度较凸轮轴组织机构量程组织机构展示 量程等分盘品牌固定上塞上盖;加运行速度度凸轮轴组织机构齿轮传动装置展示 旋盖头的启闭;恒发动机功率旋盖;运动泵检定罐装设备生产线;手触屏把握.无瓶不罐装设备生产线,没加内塞,外盖.具品牌固定正确,齿轮传动装置保持稳定,守护瓶盖子,检定准.操作使用简单等优缺。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特殊性/Characteristic：

◆微笔记本电脑添加、装量准确度、运作更方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱转速比可参与有级交流变频控速。the mainframe running speed is stepless frequency conversion.◆产生量系统自动按量的控制。the product quantity can be controlled. ◆三种出现问题的显示系统工作(如低标准气压。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆全电脑自动停止时功能键，对某一 轨道组件造成不间断无装罐、无内塞情形可全电脑自动停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术性技术指标/Main Technical Parameters：

适合規格Filling Volume	2-30ml
生产销售程度Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装表面粗糙度Filling Precision	≤±1%
电源开关 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
重新上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
工作功率 Power	2.0 kw
POS机总重量Weight	550 kg
性能尺寸规格Dimension	1800*1000*1500mm
