应用与简洁：Purpose and introduction

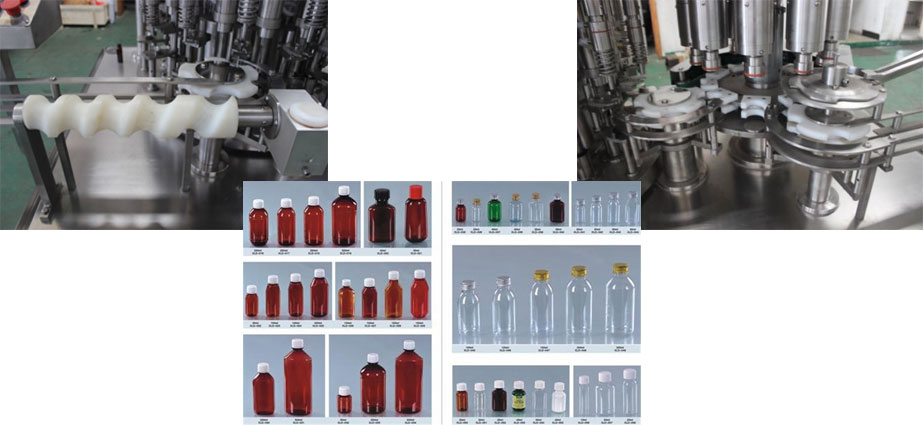

机器应用以对30-500ML系列产品玻离瓶、橡胶瓶的灌装线线封好。使用经济往来结交式气缸参与灌装线线，电磁感应震荡送盖，需要轧盖(黑色金属式)或旋盖(橡胶盖)封好，需要和组选的产出加工流程仪器连结构成的产出加工线，除此之外需要采购百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

共同点：characteristic

装量精准的，杜尽渗漏。缺瓶不包装。 定频控速。 主動表明计数法好处。 设备均按GMP让制作。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

枝术参数表/technical parameters：

型号 model	NQGX30-500
应用规格为Cutting dimension	30-500ml
加工业务能力Production capacity	80-200瓶/分（罐/钟头）80-200 bottles/min (cans/min)
灌装生产线精确 Filling accuracy	≤±1%
交流电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
物理毛重 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
